Name: YONOS VARIOUS WILO PICO-STG
Brand: Wilo
SKU: SE-AC51960
Price: 473.0 EUR
Availability: InStock

YONOS Varios Pico-STG de WILO - Q-Tech ®

€473,00

Tax included. The Shipping costs are calculated on the payment screen.

Amount

You may also interest you

You will soon find spare parts for this product here.

[{"id":30927685025930,"title":"Varios PICO STG 15\/1-8 130mm Ref. 4232742","option1":"Varios PICO STG 15\/1-8 130mm Ref. 4232742","option2":null,"option3":null,"sku":"SE-AC51960","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YONOS VARIOUS WILO PICO-STG - Varios PICO STG 15\/1-8 130mm Ref. 4232742","public_title":"Varios PICO STG 15\/1-8 130mm Ref. 4232742","options":["Varios PICO STG 15\/1-8 130mm Ref. 4232742"],"price":47300,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4048482946122","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":30927685058698,"title":"Varios PICO STG 15\/1-13 130mm Ref. 4232746","option1":"Varios PICO STG 15\/1-13 130mm Ref. 4232746","option2":null,"option3":null,"sku":"SE-AC51964","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YONOS VARIOUS WILO PICO-STG - Varios PICO STG 15\/1-13 130mm Ref. 4232746","public_title":"Varios PICO STG 15\/1-13 130mm Ref. 4232746","options":["Varios PICO STG 15\/1-13 130mm Ref. 4232746"],"price":47500,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4048482946139","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41138493292697,"title":"Varios PICO-STG 15\/1-13 180mm Ref. 4232747","option1":"Varios PICO-STG 15\/1-13 180mm Ref. 4232747","option2":null,"option3":null,"sku":"SE-AC51963","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YONOS VARIOUS WILO PICO-STG - Varios PICO-STG 15\/1-13 180mm Ref. 4232747","public_title":"Varios PICO-STG 15\/1-13 180mm Ref. 4232747","options":["Varios PICO-STG 15\/1-13 180mm Ref. 4232747"],"price":47500,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4048482943961","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41138525569177,"title":"Varios PICO-STG 25\/1-8 180mm Ref. 4232743","option1":"Varios PICO-STG 25\/1-8 180mm Ref. 4232743","option2":null,"option3":null,"sku":"SE-AC51961","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YONOS VARIOUS WILO PICO-STG - Varios PICO-STG 25\/1-8 180mm Ref. 4232743","public_title":"Varios PICO-STG 25\/1-8 180mm Ref. 4232743","options":["Varios PICO-STG 25\/1-8 180mm Ref. 4232743"],"price":47300,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4048482943688","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41138527305881,"title":"Varios PICO-STG 30\/1-8 180mm Ref. 4232745","option1":"Varios PICO-STG 30\/1-8 180mm Ref. 4232745","option2":null,"option3":null,"sku":"SE-AC51962","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"YONOS VARIOUS WILO PICO-STG - Varios PICO-STG 30\/1-8 180mm Ref. 4232745","public_title":"Varios PICO-STG 30\/1-8 180mm Ref. 4232745","options":["Varios PICO-STG 30\/1-8 180mm Ref. 4232745"],"price":47300,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4048482943923","requires_selling_plan":false,"selling_plan_allocations":[]}]

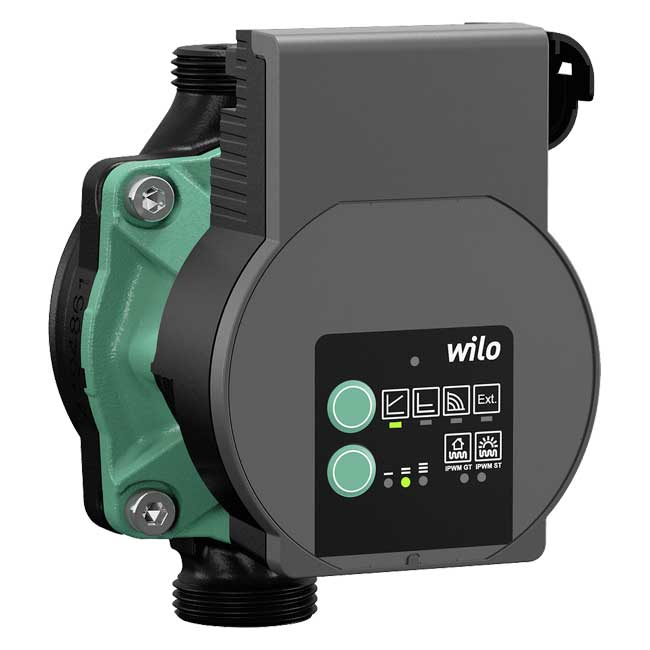

Wilo-Varios PICO-STG high-efficiency pump with electronic control.

Maintenance-free wet rotor circulator pump with threaded connection, equipped with a blockage-proof synchronous motor with ECM technology and integrated electronic power regulation for continuous regulation of differential pressure. Suitable for all heating and air conditioning applications, as well as for solar and geothermal installations.

Standard with:

- Pre-selectable regulation modes for optimal load adjustment

* Constant differential pressure (Δp-c), 3 predefined characteristic curves

* Variable differential pressure (Δp-v), 3 predefined characteristic curves

* Constant speed (3 speeds)

* External regulation via iPWM GT signal (heating/geothermal) or iPWM ST (solar)

- Synchronization function (manual programming mode) to modify the pump programming in case of replacement

- Hand pump ventilation function for purging the engine compartment

- Manual reset

- LED indicator

* Indication of the selected regulation mode and the characteristic curve

* Status indication during purge and manual restart

* LED coding during timing function

* Operation and fault indication

- Integrated motor protection

- Automatic unlocking function

- Electrical connection cable with 3-pin plug and Wilo connector

- PWM connection

- Pump casing with cataphoresis coating

Application

Suitable for all heating and air conditioning applications, as well as for solar and geothermal installations.

Operating data

Engine Data

Bomba Varios PICO-STG Wilo

Materials

•   Pump housing: Cast iron
•   Impeller: Plastic (PP, 40% GF)
•   Pump shaft: Stainless steel
•   Bearing: Carbon, metal impregnated

Dimensions and dimensional drawings

Bomba Wilo Varios Pico-STG Dimensiones

Supply

- Bomb
- Cable with 3-pin plug for pump and connection for Wilo connector
- Wilo connector
- Together
- Installation and operating instructions

Documentation

Download Installation and Operation Instruction Manual
